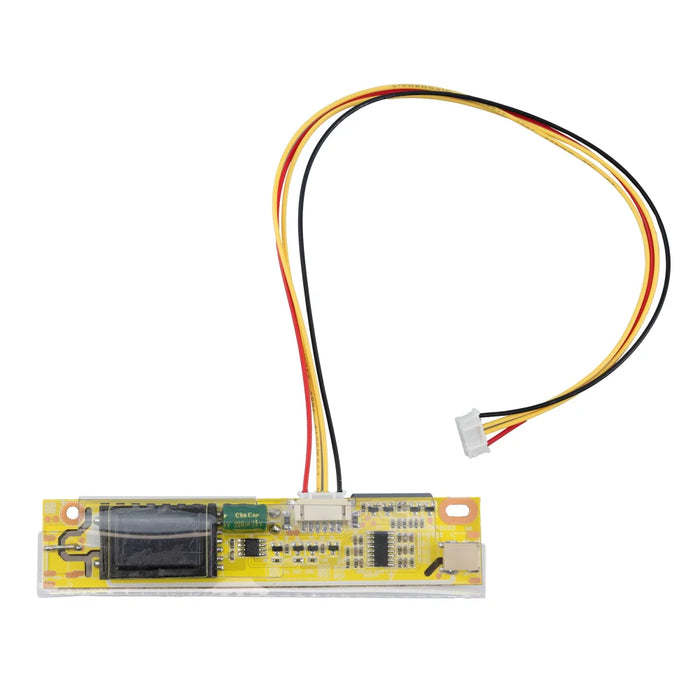

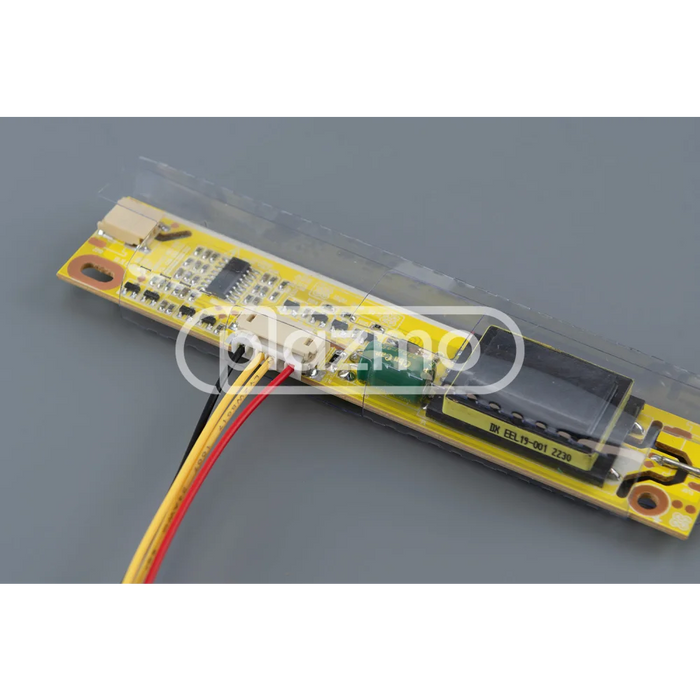

Universal 1-lamp CCFL Inverter Board for LCD panels
SKU 59901100
Save 13%
Original price
$ 15.95
Original price
$ 15.95
-
Original price
$ 15.95
Original price
$ 15.95
Current price
$ 13.95
$ 13.95
-
$ 13.95
Current price
$ 13.95
Single Lamp CCFL Inverter with 3-wire harness for LCD repair and replacement. Ideal for use with 19β or smaller displays or lamps that measure around 400mm or less in length.
Inverter board dimensions:Β 120mm x 23.5mm
Wire harness length:Β 330mm
Input Working Voltage: 10-25 Vdc
Output Voltage: 650~900Vrms
Output Current: 2.5~7mA
Inverter 6 Pin Connector Assignment:
1 β VIN: power supply (10-25V) β RED WIRE
2 β VIN: power supply (10-25V)
3 β ENA (enable, switch on/off) switch signal β YELLOW WIRE
4 β ADJ (dimming function / brightness control)
5 β GND (Ground wire)
6 β GND (Ground wire) β BLACK WIRE

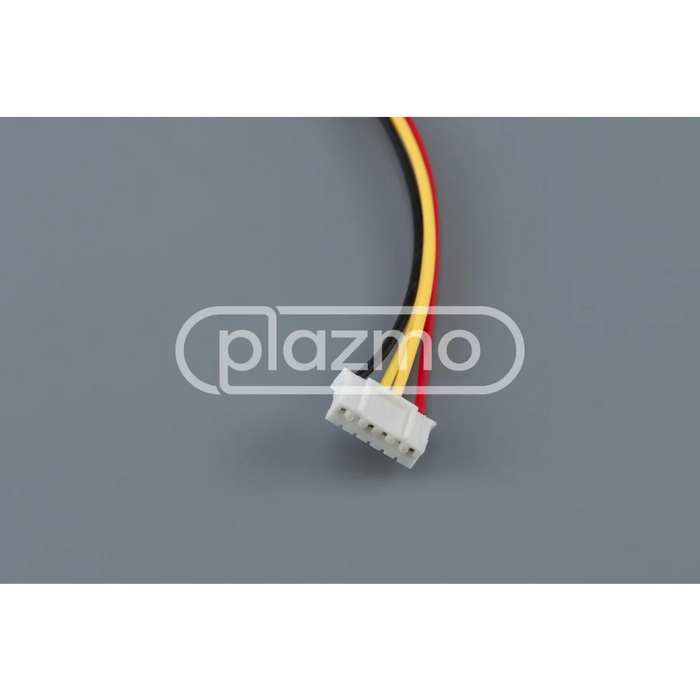

Wire Harness:
Red Wire= Input (pin #1)
Yellow Wire = Switch on/off (pin #3)
Black Wire = Ground (pin #6)
