Universal Ultra-Bright LED Backlight Kit for 15" to 24" LCD Panel Monitor for LED Replacement or CCFL Conversion

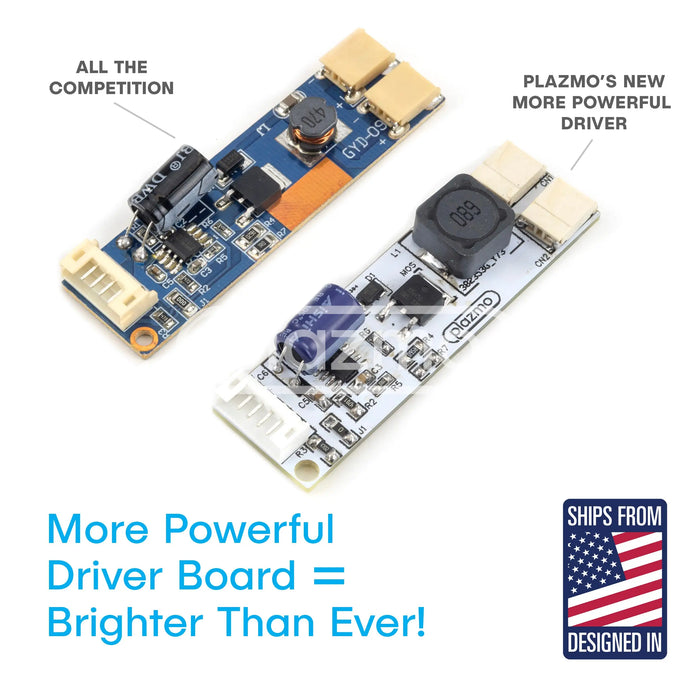

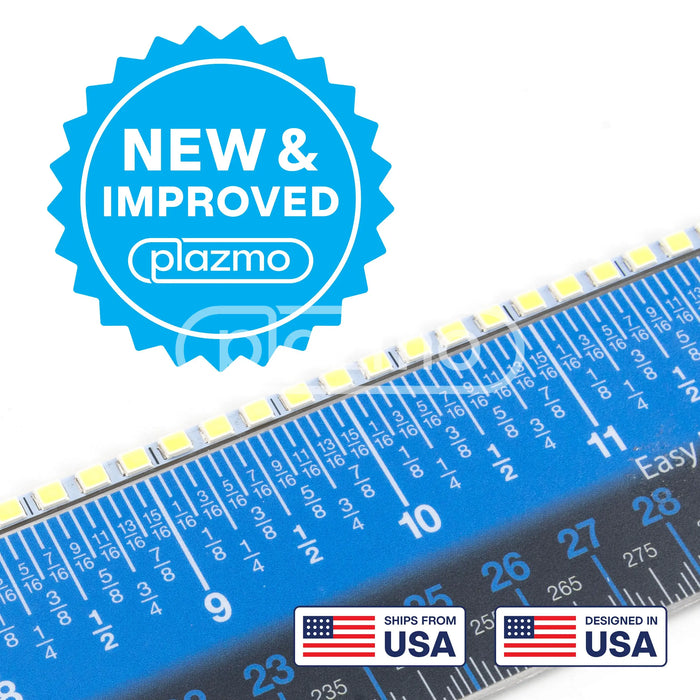

*Plazmo Exclusive* New and Improved - 20% Brighter with more LED chips per inch than the competition!

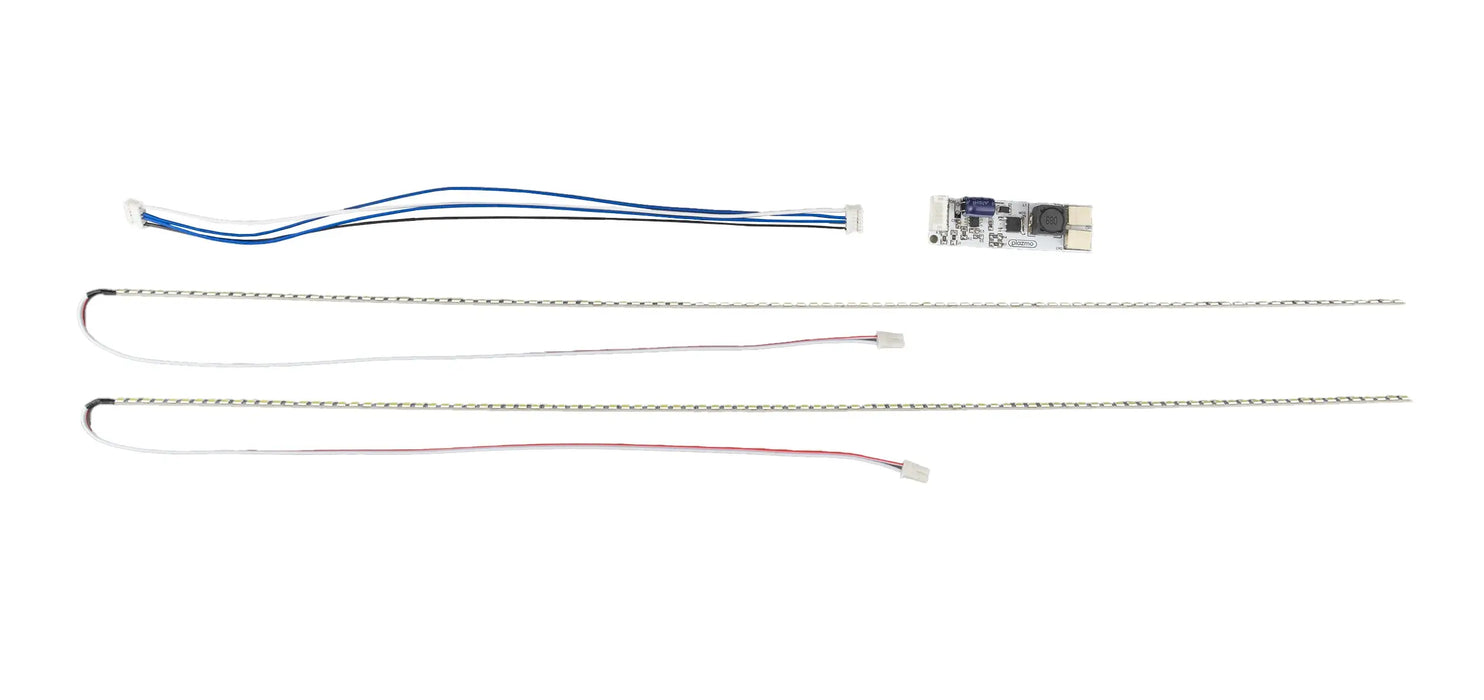

This is an extra bright universal LED kit that includes 2 high brightness LED strips, a DC-DC LED driver, and a wire harness. Our strips have more chips per inch than the competition! The LED strips can be easily trimmed in designated increments every 3 LEDs, to fit any size LCD from 15"-24". This is known as a cut-to-fit model. This LED bar can be used for LED replacement or CCFL conversion.

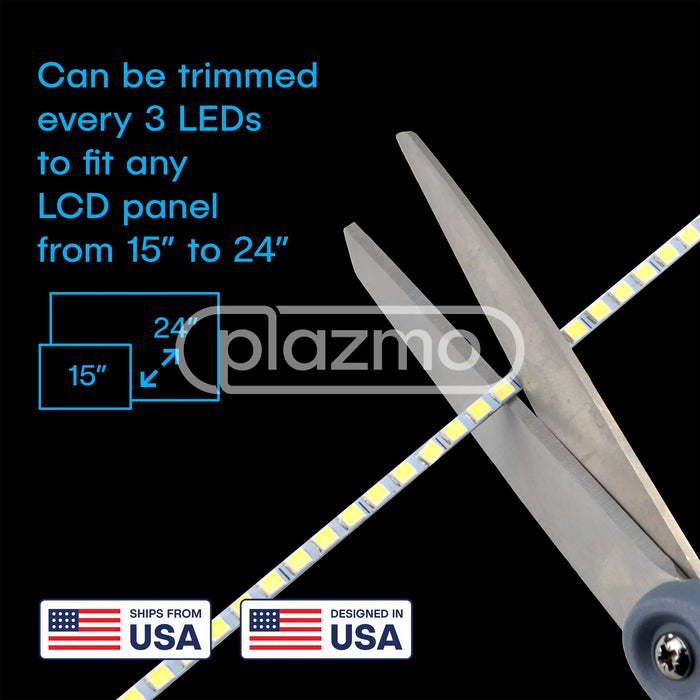

- Can be trimmed every 3 LEDs to fit any LCD Panel from 15" to 24" (see our other models for bigger or smaller LCD panels)
- Double-sided adhesive tape for easy installation
- Designed in the USA, ships from the USA
- 100% satisfaction guaranteed

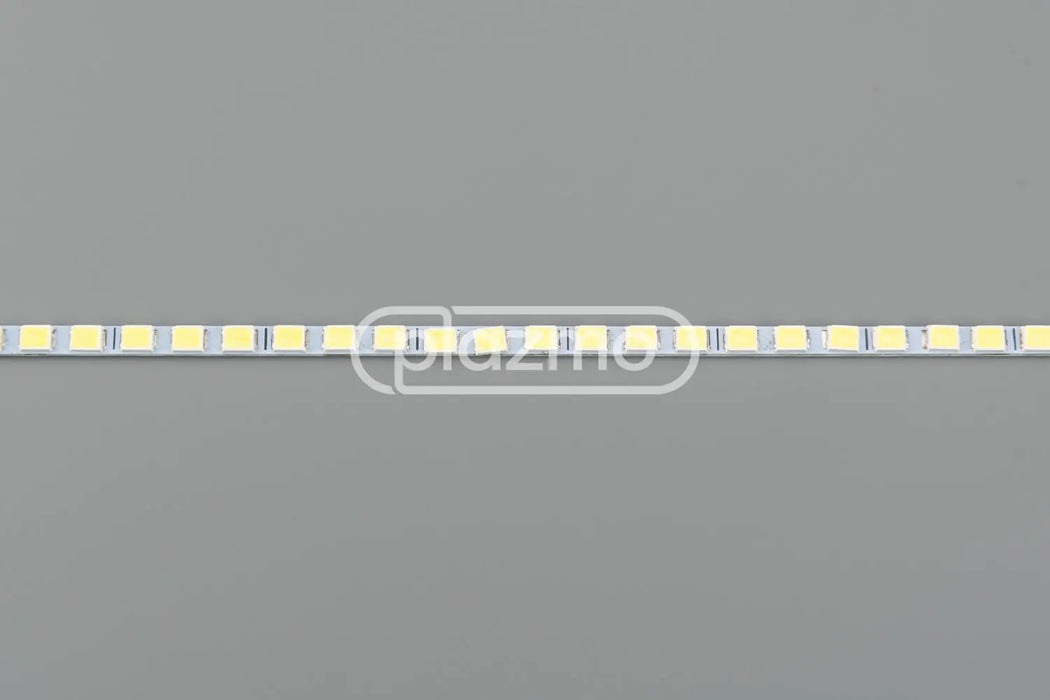

LED Strip Specifications:
- Length: 540mm x 4 x 2mm
- LED Chip Quantity: 96
- LED Chip Size: 3528

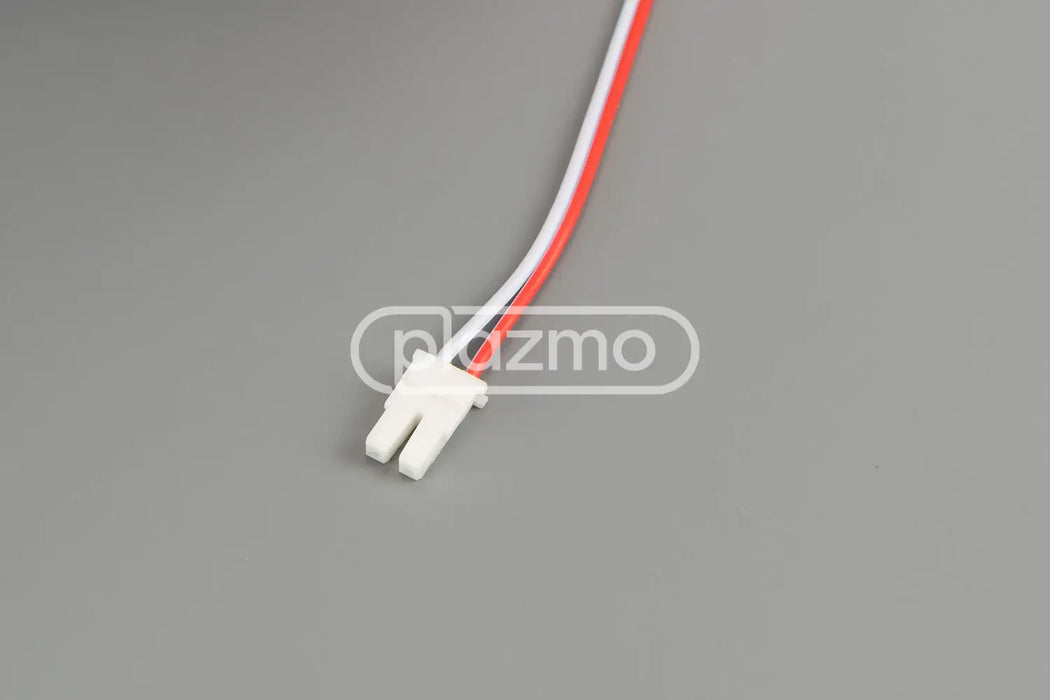

- Connector: 2 pin JST
- Color Temp: 8500k-11000k
- Strips should never be trimmed shorter than 14" inches (~350mm)

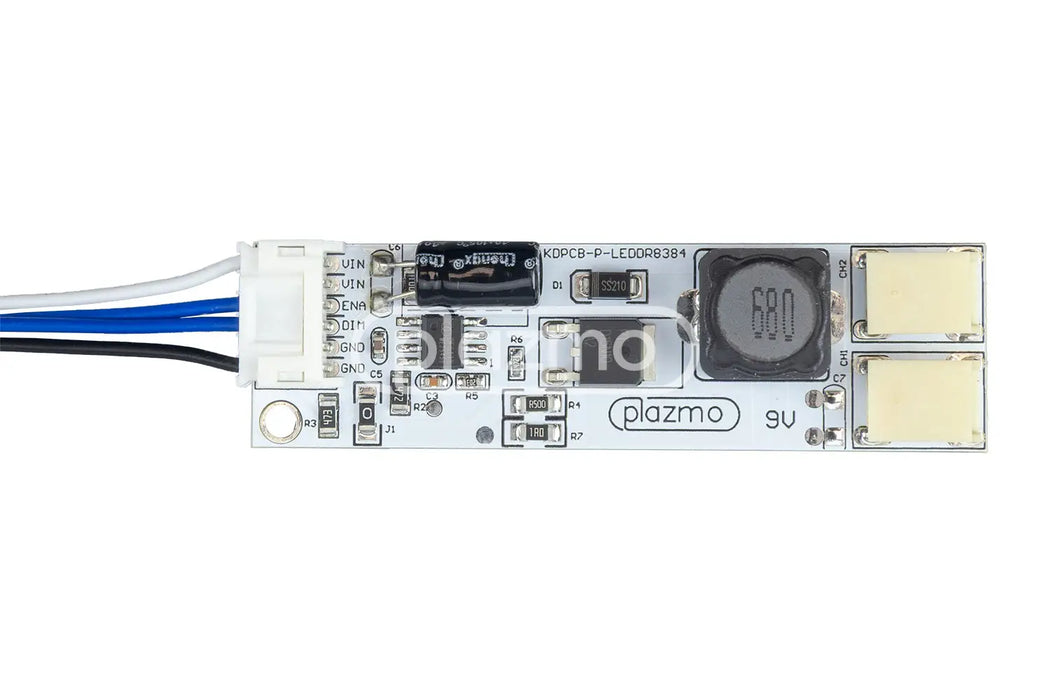

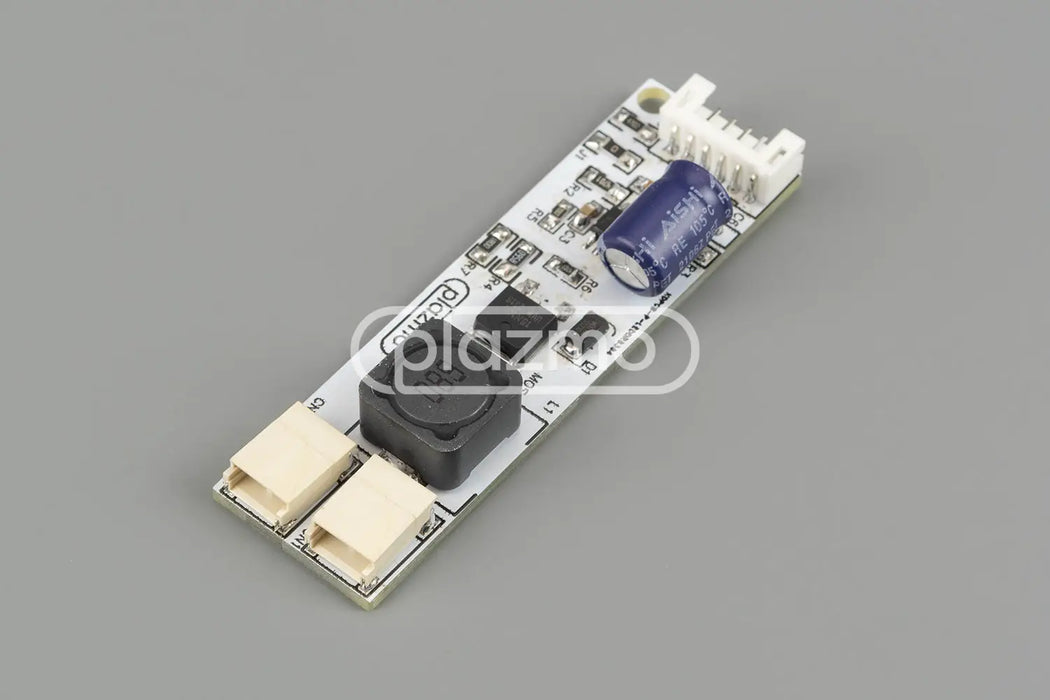

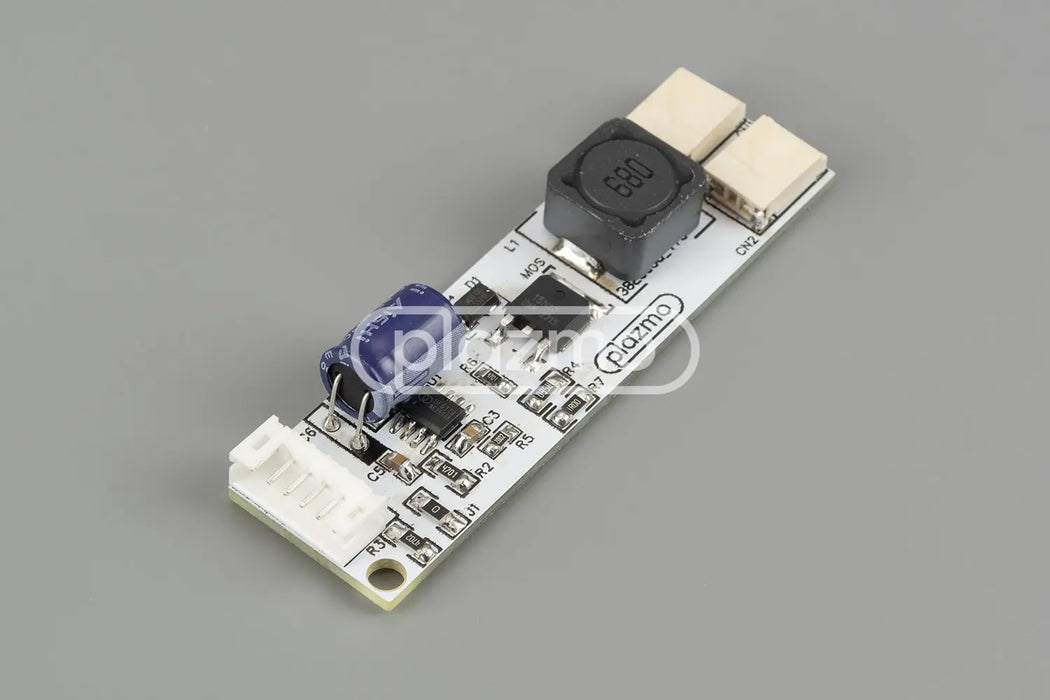

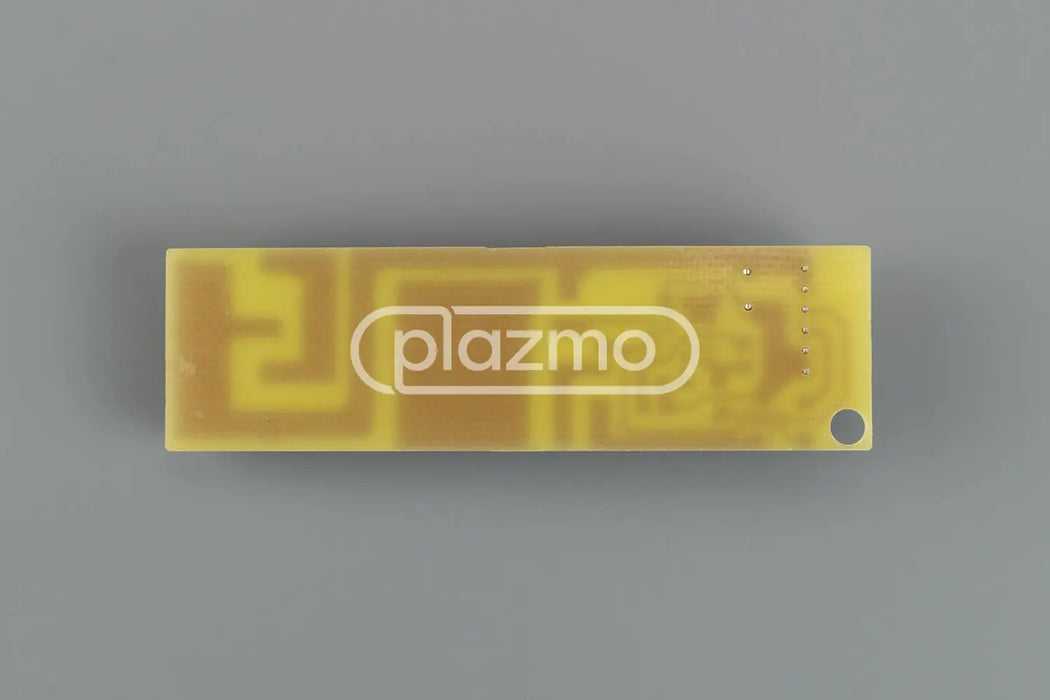

LED Driver/Inverter Specifications:
- Dimensions: 7cm x 2cm
- Input: 9-30V DC
- Output: 7.5-9.6V DC
- Dimmable, connect to the ADJ pin to allow dimming

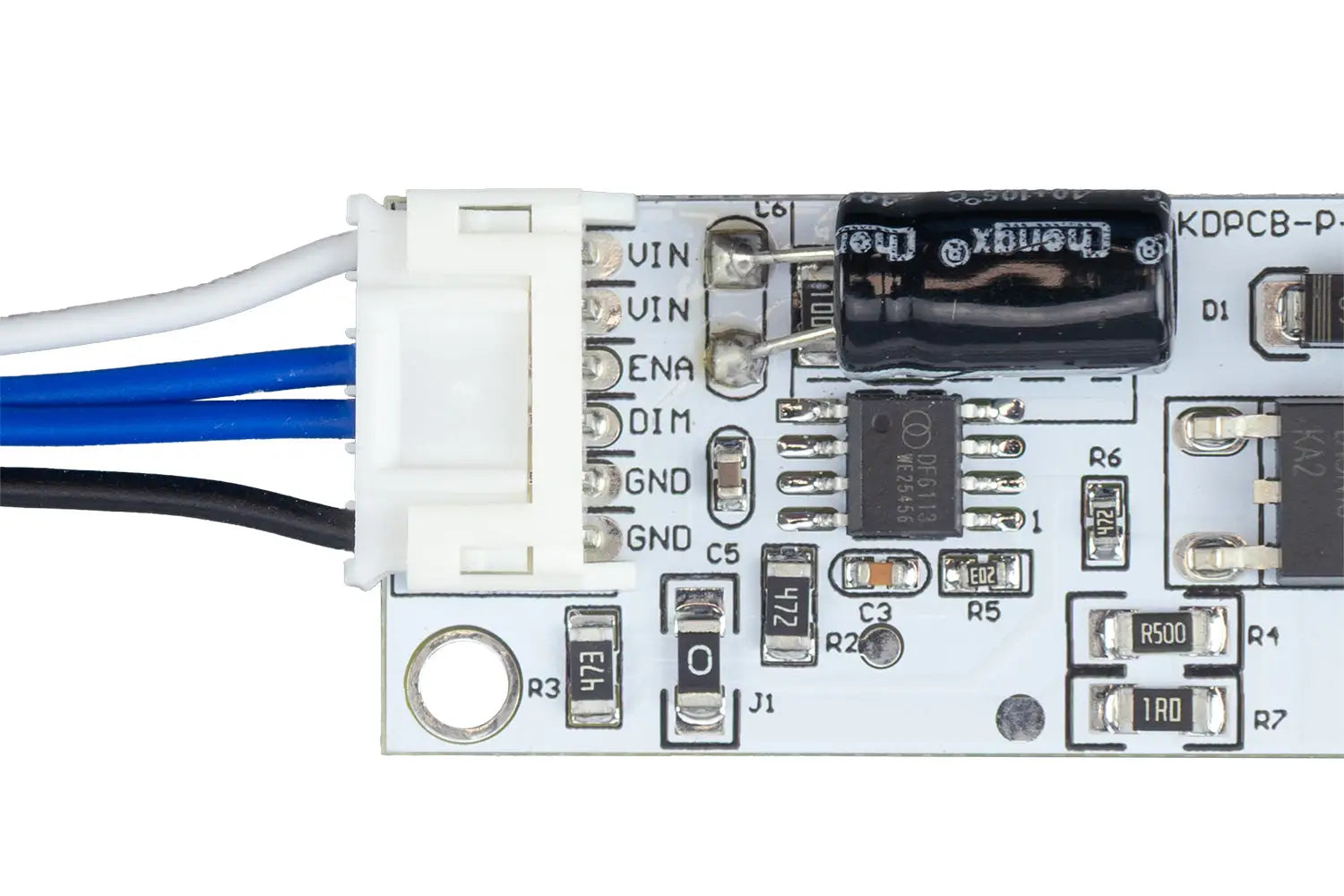

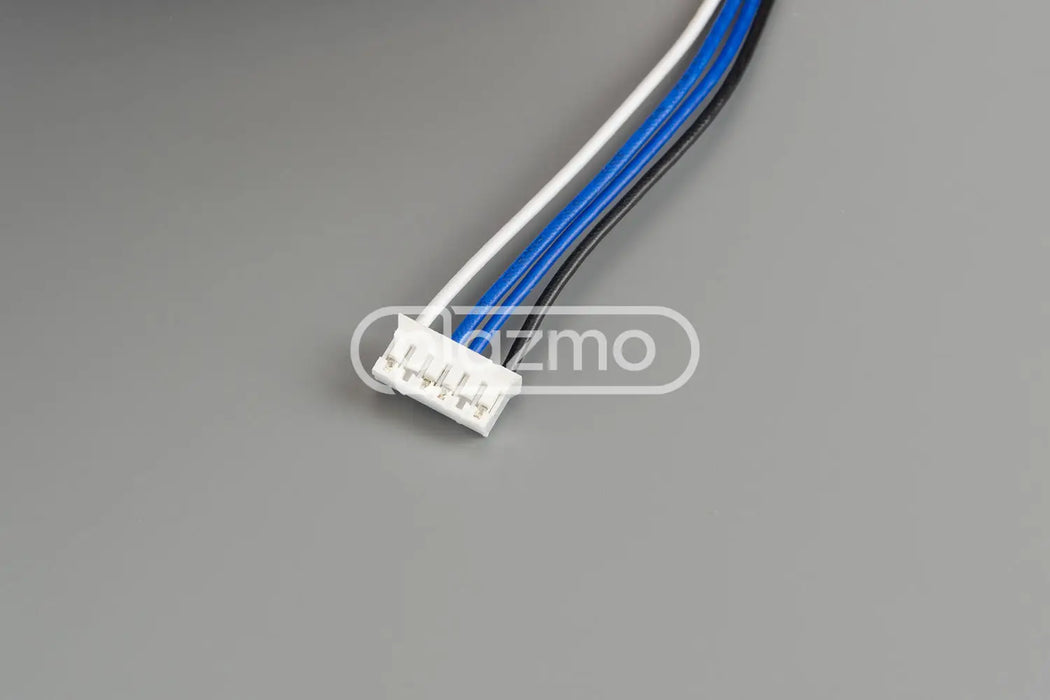

- Pin assignments definition, from White to Black in the picture:
- V IN, 9-30V (white)
- ON/OFF, 0V=OFF, 2V-5V=ON (blue)
- ADJ Dimming/Brightness, 0V-5V, 0V=Max Brightness, 5V=Min Brightness(blue)
- GND Ground (black)
This LED bar is suitable for both LED and CCFL backlight replacements and is commonly used for replacing backlights in a variety of different LCD panels found in gaming machines, POS, ATM and many other applications.
NOTE: Plazmo does not have user manuals because every model of LCD power supply board is different. The customer must have some technical expertise to identify the power source on the monitor power supply board.
Make sure you have an appropriate power supply before installing. The driver is expecting analog DC voltage.
